Outdoor Security Lighting

AMP SECURE™ is a contractor-direct outdoor security lighting solution with universal voltage (120-277V), offering reliable control and performance for commercial and residential projects.

FEATURES & BENEFITS

Selectable Lumen Output

Selectable CCT

Single-Person Install

5-Stage Marine-Grade Powder Coat

Integrated Controls

Unified Design Aestethic

Universal voltage (120-277V)

5-Year Warranty

SELECTABLE LUMEN OUTPUT & CCT

Customize brightness and color temperature to suit any application, enhancing energy efficiency and design flexibility.

LEARN MORE

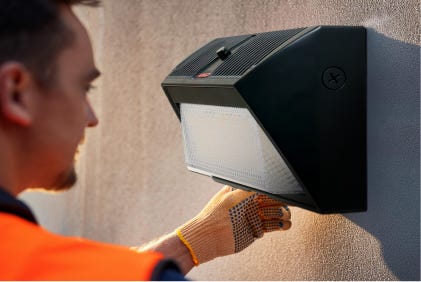

SINGLE-PERSON INSTALLATION

Designed for quick and simple setup, allowing a single contractor to efficiently complete installations without assistance.

LEARN MORE

MARINE-GRADE POWDER-COAT

Corrosion-resistant finish with marine-grade powder coat for durability in harsh environments, ensuring lasting value.

LEARN MORE

INSTALL SETUP

AMP SECURE™ is designed for quick, efficient single-person installation, allowing for fixtures to be easily connected and projects completed on time, without extra hands.

Step 1

Power Off - Ensure power to the circuit is turned off for safe installation.

Step 2

Prepare - Remove the mounting bracket from the fixture and attach it to the junction box.

Step 3

Tether - Using our standard built-in tether, secure the fixture to the mounting bracket for easy wiring.

Step 4

Connect - Carefully connect the fixture’s wires to the corresponding wires in the junction box.

Step 5

Mount - Securely mount the AMP SECURE™ fixture onto the bracket for a polished finish.

VERSATILITY ACROSS APPLICATIONS

AMP SECURE™ provides contractors with selectable lumen output and color correlated temperature (CCT) settings, providing adaptable lighting solutions for any project. With multiple lumen levels, each luminaire can easily be installed at a variety of mounting heights, while CCT options of 3000K, 4000K, and 5000K allow contractors to create the perfect atmosphere for both commercial and residential spaces.

This adaptability also helps optimize inventory levels. By offering multiple lumen levels and CCT options in one fixture, contractors can reduce the variety of products they stock, minimizing excess inventory and costs. This streamlined approach enhances efficiency and allows quicker responses to client demands, leading to successful installations and satisfied customers.

Warm White

Cool White

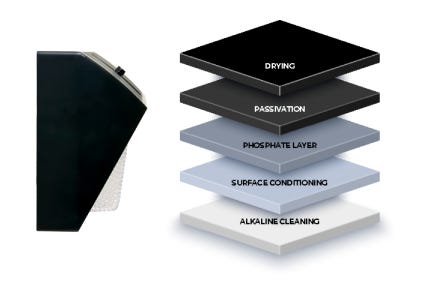

MARINE-GRADE POWDER-COAT

AMP SECURE™ fixtures feature a premium marine-grade polyester powder coat designed for lasting durability in outdoor environments. This high-end finish undergoes a rigorous five-stage pre-treatment process, including phosphate and passivation, to maximize resistance to corrosion and environmental wear.

Tested to withstand 1,000 hours of UV and salt spray exposure, this coating provides exceptional protection against fading and wear, ensuring fixtures maintain their appearance and performance over time. Built to safeguard your investment, it minimizes maintenance needs and offers peace of mind.

❮ ❯

Frequently Asked Questions

Where and why should I install AMP Secure outdoor lighting?

Where to use:

· Entrances: Install lights near front and back doors to illuminate entry points.

· Pathways: Light up walkways and driveways to ensure safe passage.

· Garages and Carports: Ensure these areas are well-lit for both convenience and security of pedestrians.

· Backyards and Gardens: Deter potential intruders by lighting up darker areas.

· Perimeters and Fences: Highlight property boundaries to discourage trespassing.

· Any public area with low illumination levels

How high should I mount outdoor flood lights?

Mounting outdoor luminaires varies by product and lumen levels. It is common for some of our smaller luminaires to be mounted at 8’ to 12’ heights. For our larger luminaires with higherlumenlevelsthemountingheightsrangefrom16’to30’mountingheights. See individual specification sheets for the suggested mounting height for each luminaire. Always remember to adjust the angle of the lights to avoid shining directly into neighbors’ windows or causing light pollution.

Do all AMP Secure luminaires come with selectable lumen levels and selectable Correlated Color Temperature (CCT)?

Yes! All of the AMP Secure luminaires come standard with variable lumens and CCT levels. The switches to change the lumens or CCT are mounted on the exterior of the luminaire, allowing for adjustments after the installation. See installation instructions for further details.

What are the advantages of selectable lumen and CCT levels?

Selectable lumens allow for variable mounting heights while using or stocking one luminaire. Variable mounting height options make these luminaires suitable for diverse applications, from residential properties to commercial and public spaces. They can be adapted to different environments, ensuring effective lighting regardless of the setting. Higher mounting heights can cover larger spaces, while lower heights focus light on specific spots, providing better coverage and uniformity.

Variable CCT levels add additional depth to the AMP Secure family of products, with variable CCT of 3000K, 4000K, and 5000K one luminaire can be comfortably installed for a residential application at 3000K and for commercial lighting at 4000K and 5000K.

AMP Secure luminaires are extremely flexible and reduce inventory needs while satisfying all stocking needs.

What are the advantages of similar unified aesthetic design of AMP Secure luminaires?

In the realm of outdoor illumination, the aesthetic appeal and functional performance of lighting fixtures are equally important. The concept of an outdoor lighting family of products with a unified aesthetic design offers numerous advantages. These advantages span from visual harmony and cohesion to operational efficiency, making them a compelling choice for various settings, including residential, commercial, and public spaces.

With the wide variety of AMP Secure products, the product line can easily be installed into full building architectural designs requiring parking lot, building exterior, entry ways creating a cohesive design that architects often seek.

Having a family of products with a similar design simplifies maintenance. Since the fixtures share common components and design elements, it becomes easier to perform routine maintenance, repairs, and replacements. This can lead to reduced downtime and lower maintenance costs.

Are AMP Secure luminaires durable when exposed to the elements?

Yes! Our luminaires are precision die-cast aluminum in construction and have a rugged Marine Grade polyester powder coat paint, rated to 1,000 hour salt spray test per ASTM B117.

How do AMP Secure luminaires install onto a home or building facade?

All the wall mounted flood lights and the wallpack have a universal mounting bracket to mount to a common junction box. See our installation sheets for additional details.
The AMP Secure Area Light offers three industry standard mounting methods.
Arm Mount – Used to install to the side of 3” to 6” diameter and square poles. The Arm Mount option can be installed onto any flat surface.

Slipfitter Mount – The Slipfitter Mount allows for installation onto the top of a pole that has a tenon mount. The slipfitter accepts 2 3/8” standard tenon diameters.

Trunnion Mount – The Trunnion Mount is versatile as it can be installed onto any flat surface. The trunnion mount allows for adjustability of the luminaire and installations space might be a limitation.

Does AMP Lighting sell poles for the area lights?

AMP Lighting works with a variety of national suppliers that will help with selection of poles for various US locations. Including local and state code requirements and wind rating requirements.

What is an EPA rating on your Area Light specification sheets?

An EPA rating for a lighting fixture refers to its Effective Projected Area in relation to wind load. It quantifies the amount of surface area of the fixture (or any attached components, like arms, reflectors, etc.) that is exposed to the wind, which contributes to the overall wind resistance or load.

Similar to the EPA rating for lighting poles, the EPA rating for a lighting fixture helps engineers understand how much wind force the fixture can withstand and ensures that it will remain stable and functional in the environmental conditions it will face.

New

AMP SECURE™ Twin Head Round Security Light (120V)

$49.99
A low-glare solution for residential and commercial security lighting. With selectable lumens (1900/3800) and CCT (3000K/4000K/5000K), plus an integrated photocell for dusk-to-dawn control, this durable 120V fixture delivers reliable performance. 5-Year Warranty.
Learn More
New

AMP SECURE™ Twin Head Round Security Light with Motion Sensor (120V)

$69.99
A low-glare, reliable security lighting solution for residential and commercial applications. Featuring selectable lumen output (1900/3800 lumens), CCT (3000K/4000K/5000K), and an integrated motion sensor, this durable die-cast aluminum fixture provides customizable illumination for enhanced safety and energy efficiency. 5-Year Warranty.
Learn More
New

AMP SECURE™ Twin Head Rectangular Security Light (120V)

$54.99
A sleek, low-glare solution for residential and commercial lighting. With selectable lumen output (1400/2900 lumens), adjustable color temperature (3000K/4000K/5000K), and an integrated dusk-to-dawn photocell, this durable 120V fixture ensures efficient, tailored illumination. Ideal for outdoor security and safety.
Learn More
New

AMP SECURE™ Twin Head Rectangular Security Light with Motion Sensor (120V)

$74.99
Designed with low-glare performance to minimize light spill, this IP66-rated fixture is ideal for residential and commercial applications. Featuring a motion sensor for motion-activated illumination, selectable wattage (15W/30W), and CCT (3000K/4000K/5000K), it offers tailored lighting solutions with integrated dimming and energy-efficient control in a durable, die-cast aluminum housing.
Learn More
New

AMP SECURE™ Modern Area Light with Arm Mount (120-277V)

$179.99
DLC certified and delivering up to 13,000 lumens, this modern area light is ideal for parking lots, building facades, and sports areas. Features selectable wattage, CCT, and Type IV optics for semicircular forward-throw lighting. Built from durable die-cast aluminum with a corrosion-resistant powder coat. 5-Year Warranty.
Learn More
New

AMP SECURE™ Modern Area Light with Slipfitter Mount (120-277V)

$164.99
DLC certified and delivering up to 13,000 lumens, this modern area light is ideal for pole-mounted applications in parking lots, walkways, and roadways. Features selectable wattage, CCT, and Type IV optics for semicircular forward-throw lighting. Built from durable die-cast aluminum with a corrosion-resistant powder coat. 5-Year Warranty.
Learn More
New

AMP SECURE™ Modern Area Light with Trunnion Mount (120-277V)

$164.99
DLC certified and delivering up to 13,000 lumens, this modern area light is ideal for parking lots, building entrances, sports venues, and security lighting needing precise light direction. Featuring selectable wattage, CCT, and a Type IV optic for semicircular forward-throw illumination. The trunnion bracket allows easy mounting to various surfaces. 5-Year Warranty.
Learn More
New

AMP SECURE™ Low Profile Wall Pack (120-277V)

$99.99
DLC certified, this modern low-profile wall pack features selectable lumen output, CCT, universal 120-277V compatibility, and 0-10V dimming. Ideal for commercial exteriors, including shopping malls, schools, and delivery areas. 5-Year Warranty.
Learn More
New

AMP SECURE™ 35W Contemporary Flood Light (120-277V)

$65.99
DLC certified, this 35W Flood Light offers versatile illumination with selectable lumens, CCT, and an integrated dusk-to-dawn photocontrol. Ideal for residential and commercial applications, it features durable die-cast aluminum housing and universal 120-277V compatibility. 5-Year Warranty.
Learn More
New

AMP SECURE™ 80W Contemporary Flood Light (120-277V)

$99.99
DLC certified, this 80W Flood Light offers versatile illumination with selectable lumens, CCT, and an integrated dusk-to-dawn photocontrol. Ideal for residential and commercial applications, it features durable die-cast aluminum housing and universal 120-277V compatibility. 5-Year Warranty.
Learn More
New

AMP SECURE™ Decorative Barn Light (120-277V)

$79.99
Vintage-style barn light offers up to 18 configurations with selectable lumens, CCT, and three arm options. Designed for versatility with universal 120-277V, integrated photocontrol, and 0-10V dimming. 5-Year Warranty.
Learn More
New

AMP SECURE™ Adjustable Wall Flood Light (120-277V)

$59.99
DLC certified, this adjustable flood light provides versatile security lighting with selectable wattage, CCT, and an integrated dusk-to-dawn photocontrol. Durable die-cast aluminum construction and universal 120-277V compatibility make it ideal for residential and commercial applications. 5-Year Warranty.
Learn More
